Philmac IPS-OD Large Bore
IPS-OD LARGE BORE (PE x PE)
| Product Number | Size |
|---|---|
| 77-30888 | 2″ x 2″ |
| 77-3081212 | 3” x 3” |
IPS-OD LARGE BORE SLIP (PE x PE)
| Product Number | Size |
|---|---|
| 77-30988 | 2″ x 2″ |
| 75-3091212 | 3” x 3” |
IPS-OD LARGE BORE TEE (PE x PE x PE)
| Product Number | Size |
|---|---|
| 77-312888 | 2″ x 2″ x 2″ |
| 75-312121212 | 3” x 3” x 3” |
IPS-OD LARGE BORE FEMALE TEE (PE x PE x FI NPT)
| Product Number | Size |
|---|---|
| 75-351332 | 3/4″ x 3/4″ x 1/2″ |
| 75-351333 | 3/4″ x 3/4″ x 3/4″ |
| 75-351334 | 3/4″ x 3/4″ x 1″ |
| 75-351442 | 1″ x 1″ x 1/2″ |
| 75-351443 | 1″ x 1″ x 3/4″ |
| 75-351444 | 1″ x 1″ x 1″ |
| 75-351445 | 1″ x 1″ x 1-1/4″ |
| 75-351552 | 1-1/4″ x1-1/4″ x 1/2″ |
| 75-351553 | 1-1/4″ x 1-1/4″ x 3/4″ |
| 75-351554 | 1-1/4″ x 1-1/4″ x 1″ |
| 75-351555 | 1-1/4″ x 1-1/4″ x 1-1/4″ |
| 75-351556 | 1-1/4″ x 1-1/4″ x 1-1/2″ |
| 75-351662 | 1-1/2″ x 1-1/2″ x 1/2″ |
| 75-351663 | 1-1/2″ x 1-1/2″ x 3/4″ |
| 75-351664 | 1-1/2″ x 1-1/2″ x 1″ |
| 75-351665 | 1-1/2″ x 1-1/2″ x 1-1/4″ |
| 75-351666 | 1-1/2″ x 1-1/2″ x 1-1/2″ |
| 75-351668 | 1-1/2″ x 1-1/2″ x 2″ |
IPS-OD LARGE BORE MALE ADAPTOR (PE x MI NPT)
| Product Number | Size |
|---|---|
| 77-33088 | 2″ x 2″ |
IPS-OD LARGE BORE ELBOW (PE x PE)
| Product Number | Size |
|---|---|
| 75-31822 | 1/2″ x 1/2″ |
| 75-31832 | 3/4″ x 1/2″ |
| 75-31833 | 3/4″ x 3/4″ |
| 75-31844 | 1″ x 1″ |
| 75-31855 | 1-1/4″ x 1-1/4″ |
| 75-31866 | 1-1/2″ x 1-1/2″ |
IPS-OD LARGE BORE FEMALE ADAPTOR (PE x FI NPT)
| Product Number | Size |
|---|---|
| 77-33288 | 2″ x 2″ |
IPS-OD LARGE BORE END CAP (PE)
| Product Number | Size |
|---|---|
| 77-3498 | 2″ |
| 75-34912 | 3” |
IPS-OD LARGE BORE FEMALE ELBOW (PE x FI NPT)
| Product Number | Size |
|---|---|
| 77-3498 | 2″ |
| 75-34912 | 3” |
IPS-OD LARGE BORE ACME SLIP TEE (PE x ACME)
| Product Number | Size |
|---|---|
| 77-353886 | 2” x 1-1/2” |
IPS-OD LARGE BORE PVC CONNECTION KITS (Grip Ring Only)
| Product Number | Size |
|---|---|
| 77-6898 | 2″ |
IPS-OD LARGE BORE ACME ELBOW
| Product Number | Size |
|---|---|
| 77-32386 | 2” x 1-1/2” |
Overview / Why Choose This Product

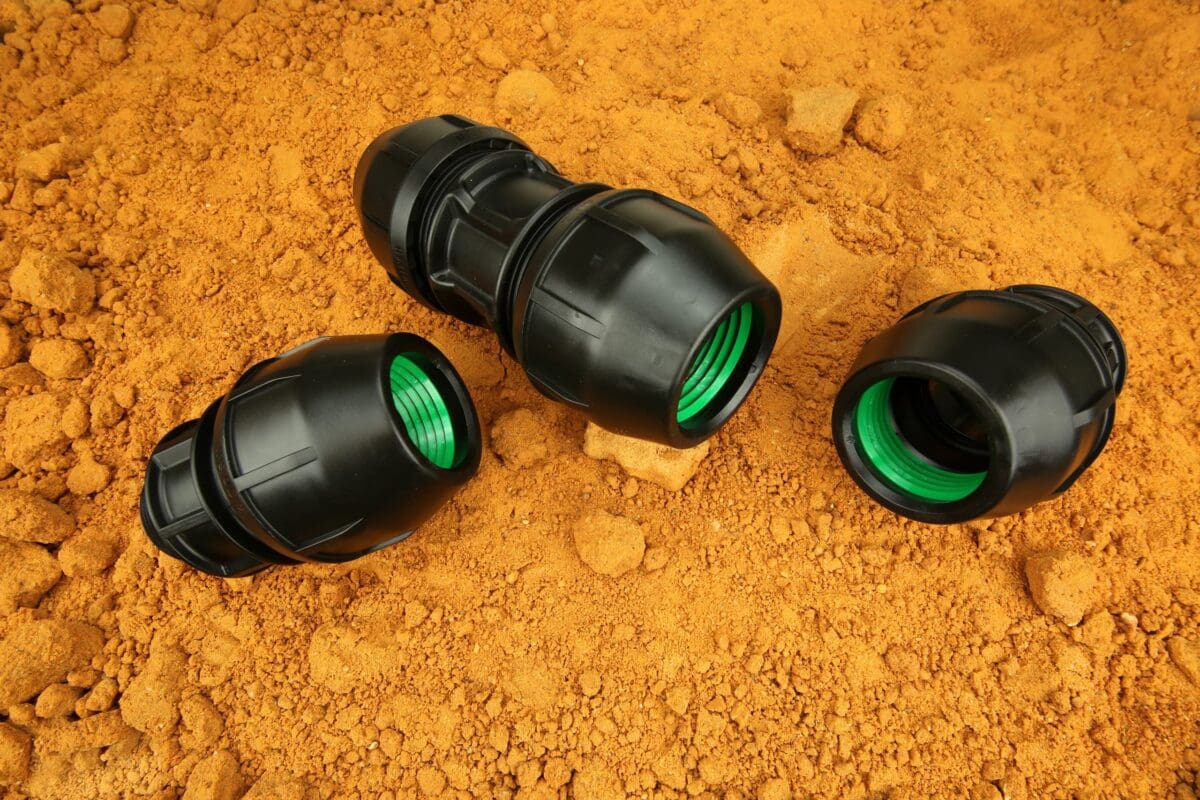

Philmac IPS‑OD Large Bore Compression Couplings are purpose‑built for large‑diameter 2″ and 3″ IPS‑OD HDPE pipe, delivering strong, reliable, and repeatable mechanical joints with minimal installation effort. Using Slide & Tighten™ technology, installers can assemble couplers quickly with a simple insert‑and‑tighten method that requires no pipe preparation and no force to push the pipe past the seal. This reduces labor time and increases installation consistency across field conditions.
The IPS-OD Large Bore Couplings are engineered with a 230 psi pressure rating, ensuring suitability for demanding cold‑water systems used by municipalities, rural districts, and irrigation operators. Their robust thermoplastic construction is corrosion‑resistant, lightweight, and designed for long‑term performance in buried or above‑ground environments. The fittings also use a visual stop—the flange on the fitting body—to ensure correct tightening and prevent over‑torqueing. With components retained inside the nut assembly, installers benefit from a clean, efficient workflow and less risk of losing parts during trench installations.
IPS-OD Large Bore Key Features
Slide & Tighten™ technology – Simple, repeatable installation with no pipe prep required.
Rated to 230 psi – Built for high‑pressure water systems.
Large bore sizes – Available in 2″ and 3″ HDPE pipe connections.
Visual stop indicator – Flange shows when proper tightening is achieved.
Minimal pipe twist – Engineered to reduce rotation during tightening.
No loose components – Split ring, spacer, and seal retained in nut for easy handling.
Advanced thermoplastic construction – Corrosion‑resistant and lead‑free with long service life.
Can be installed under live conditions – No shutdown required in certain scenarios.
Applications & Benefits
Applications
- Municipal and utility water systems
- Rural water distribution
- Agricultural and irrigation networks
- Large‑diameter HDPE pipeline repairs
- Water transfer and pump station connections
Benefits
- Fast installation – No special equipment, power, or inserts needed.
- Reliable sealing performance – High‑integrity joints minimize leak risks.
- Long‑term durability – Corrosion‑free materials ensure decades of service.
- Installer‑friendly design – Compact size, retained components, and minimal twist.
- Safe for potable water use – Lead‑free and compliant with North American requirements.
Technical Specifications
Pipe Sizes: 2″ and 3″ IPS‑OD HDPE pipe
Pressure Rating: 230 psi
Material: Advanced lightweight thermoplastics with corrosion resistance
Service Life: 50 years under standard conditions
Approvals: NSF / CSA B137.1 potable‑water compliant (based on IPS‑OD family performance)
Not Recommended For: Hot‑water systems or indoor building use
Installation Guide
- Cut the HDPE pipe square.
- Insert pipe into the fitting until the first point of resistance.
- Tighten nut to the flange—this is your visual stop.
- Use a standard wrench; no specialty tools required.
- Can be installed under live pressure when needed.
FAQs
What pipe types are compatible IPS-OD Large Bore?
These couplings are designed exclusively for 2″ and 3″ IPS‑OD HDPE pipe.
Do I need pipe inserts or prep?
No. Slide & Tighten™ requires no prep and no force to seat the pipe.
What is the pressure rating of IPS-OD Large Bore?
230 psi for high‑pressure cold‑water applications.
